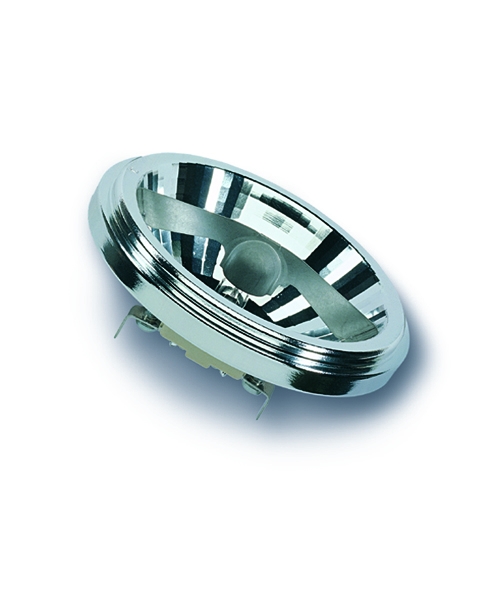

Skylight IRC EcoPlus with reflector silver, G53
Art.-No. | Order Code | Luminous intensity | Angle of emission | Diameter max. | Overall lenth max. | Box cont. |
---|---|---|---|---|---|---|
22313638 | RJL 35W/12/SKY/IRC/SP/G53 | 22500 cd | 6 degrees | 111 mm | 67 mm | 6 |
22313637 | RJL 35W/12/SKY/IRC/FL/G53 | 4200 cd | 24 degrees | 111 mm | 67 mm | 6 |
22313640 | RJL 50W/12/SKY/IRC/SP/G53 | 33000 cd | 6 degrees | 111 mm | 67 mm | 6 |
22313639 | RJL 50W/12/SKY/IRC/FL/G53 | 5500 cd | 24 degrees | 111 mm | 67 mm | 6 |
22318199 | RJL 50W/12/SKY/IRC/WFL/G53 | 2000 cd | 40 degrees | 111 mm | 67 mm | 6 |
22314533 | RJL 60W/12/SKY/IRC/SP/G53 | 42000 cd | 6 degrees | 111 mm | 67 mm | 6 |
22314532 | RJL 60W/12/SKY/IRC/FL/G53 | 7000 cd | 24 degrees | 111 mm | 67 mm | 6 |
22318200 | RJL 60W/12/SKY/IRC/WFL/G53 | 2800 cd | 40 degrees | 111 mm | 67 mm | 6 |
Skylight with reflector silver, G53
Art.-No. | Order Code | Luminous intensity | Angle of emission | Diameter max. | Overall lenth max. | Box cont. |
---|---|---|---|---|---|---|
22313804 | RJL 35W/6/SKY/SSP/G53 | 30000 cd | 4 degrees | 111 mm | 67 mm | 6 |
22315105 | RJL 50W/12/SKY/SSP/G53 | 40000 cd | 4 degrees | 111 mm | 67 mm | 6 |
22315106 | RJL 50W/12/SKY/SP/G53 | 17000 cd | 6 degrees | 111 mm | 67 mm | 6 |
22311495 | RJL 50W/12/SKY/FL/G53 | 4000 cd | 24 degrees | 111 mm | 67 mm | 6 |
22315107 | RJL 75W/12/SKY/SP/G53 | 30000 cd | 6 degrees | 111 mm | 67 mm | 6 |
22311496 | RJL 75W/12/SKY/FL/G53 | 5300 cd | 24 degrees | 111 mm | 67 mm | 6 |
22311497 | RJL 75W/12/SKY/WFL/G53 | 2000 cd | 40 degrees | 111 mm | 67 mm | 6 |
22315110 | RJL 100W/12/SKY/SP/G53 | 48000 cd | 6 degrees | 111 mm | 67 mm | 6 |
22311227 | RJL 100W/12/SKY/FL/G53 | 8500 cd | 24 degrees | 111 mm | 67 mm | 6 |
22311228 | RJL 100W/12/SKY/WFL/G53 | 2800 cd | 40 degrees | 111 mm | 67 mm | 6 |
