Halogen Low Voltage Lamps - Capsules

Pin base lamps Skylight IRC EcoPlus, UV-EX, base G4
Pin base lamps Skylight IRC EcoPlus, UV-EX, base GY6.35
Pin base lamps Skylight, UV-EX, base G4
Pin base lamps Skylight, UV-EX, base GY6.35
Pin base lamps in low pressure technology, UV-EX, base G4 and GY6.35
Pin base lamps 24V, UV-EX, base G4 and GY6.35, for enclosed luminaires

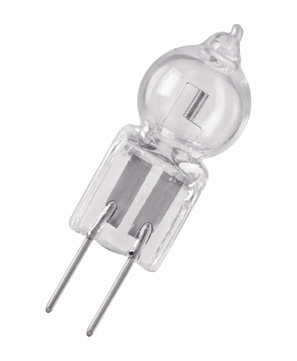

Pin base lamps Skylight IRC EcoPlus, UV-EX, base G4

Art.-No. Order Code Energy Label Luminous flux Diameter max. Overall Length max. Box cont.
22318333 RJL 14W/12/SKY/IRC/G4 B 240 lm 10 mm 33 mm 40

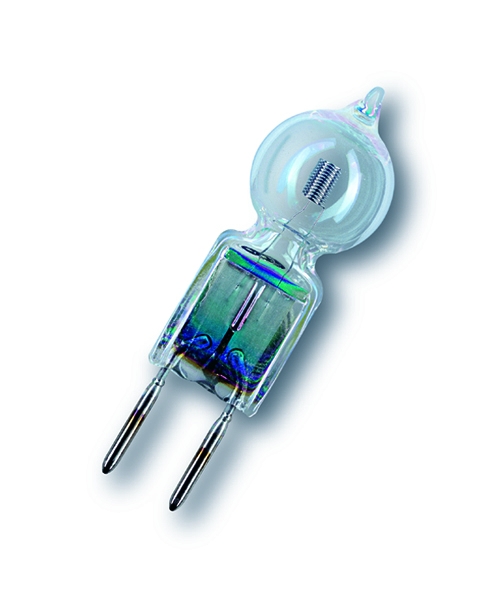

Pin base lamps Skylight IRC EcoPlus, UV-EX, base GY6.35

Art.-No. Order Code Energy Label Luminous flux Diameter max. Overall Length max. Box cont.
22314530 RJL 25W/12/SKY/IRC/GY6.35 B 500 lm 12 mm 44 mm 40
22313223 RJL 35W/12/SKY/IRC/GY6.35 B 860 lm 12 mm 44 mm 40
22313224 RJL 50W/12/SKY/IRC/GY6.35 B 1180 lm 12 mm 44 mm 40
22314531 RJL 60W/12/SKY/IRC/GY6.35 B 1650 lm 12 mm 44 mm 40

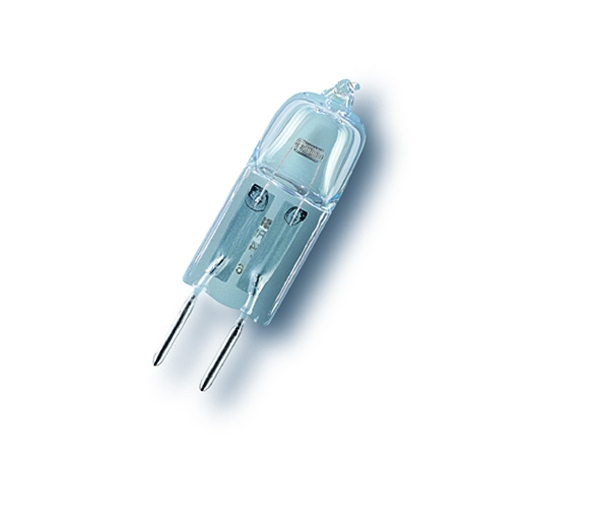

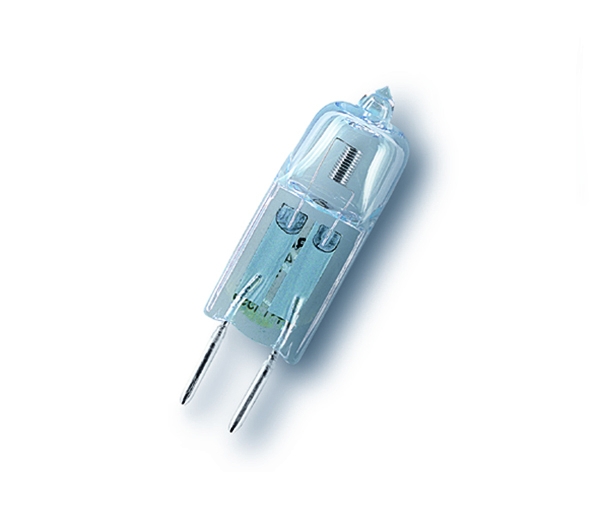

Pin base lamps Skylight, UV-EX, base G4

Art.-No. Order Code Energy Label Luminous flux Diameter max. Overall Length max. Box cont.
22311198 RJL 10W/6/SKY/G4 C 110 lm 10 mm 33 mm 40
22311199 RJL 5W/12/SKY/G4 B 55 lm 10 mm 33 mm 40
22311200 RJL 10W/12/SKY/G4 C 130 lm 10 mm 33 mm 40
22311206 RJL 20W/12/SKY/G4 C 300 lm 10 mm 33 mm 40

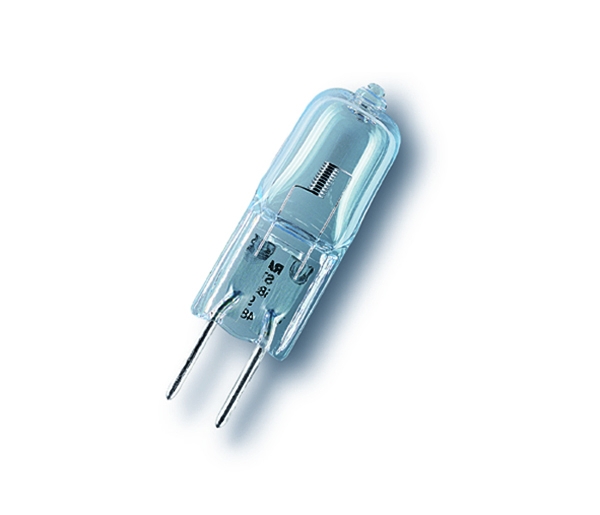

Pin base lamps Skylight, UV-EX, base GY6.35

Art.-No. Order Code Energy Label Luminous flux Diameter max. Overall Length max. Box cont.
22311212 RJL 20W/12/SKY/GY6.35 C 290 lm 12 mm 44 mm 40
22311213 RJL 35W/12/SKY/GY6.35 C 580 lm 12 mm 44 mm 40
22311214 RJL 50W/12/SKY/GY6.35 C 900 lm 12 mm 44 mm 40
22311215 RJL 75W/12/SKY/GY6.35 C 1450 lm 12 mm 44 mm 40
22311800 RJL 90W/12/SKY/GY6.35 C 1800 lm 12 mm 44 mm 40



Pin base lamps in low pressure technology, UV-EX, base G4 and GY6.35

Art.-No. Order Code Energy Label Luminous flux Diameter max. Overall Length max. Box cont.
22315104 RJL 10W/12/G4 C 140 lm 10 mm 33 mm 40
22312112 RJL 20W/12/G4 C 320 lm 10 mm 33 mm 40
22312113 RJL 50W/12/GY6.35 C 910 lm 12 mm 44 mm 40



Pin base lamps 24V, UV-EX, base G4 and GY6.35, for enclosed luminaires

Art.-No. Order Code Energy Label Luminous flux Diameter max. Overall Length max. Box cont.
22311364 RJL 20W/24/G4 C 320 lm 10 mm 33 mm 40
22311218 RJL 50W/24/GY6.35 C 900 lm 12 mm 44 mm 40
22311222 RJL 100W/24/GY6.35 C 2200 lm 12 mm 44 mm 40
22311223 RJL 150W/24/GY6.35 C 3200 lm 12 mm 44 mm 40
