Metal Halide Lamps - Elliptical

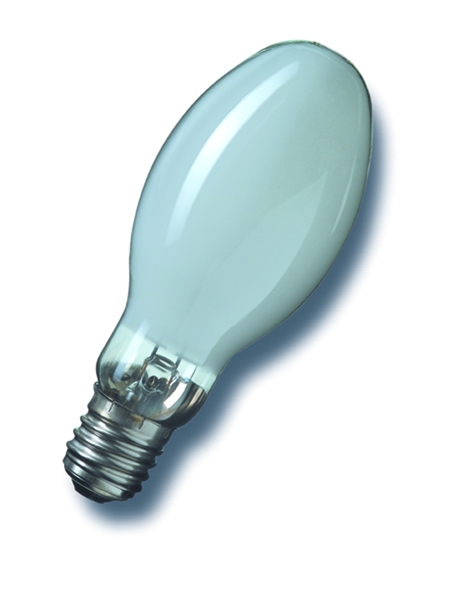

HRI-E elliptical bulb, coated, protected, UV-EX, E27 and E40, also for open fixtures
| Art.-No. | Order Code | Lamp wattage | Luminous flux | Diameter max. | Overall Length max. | Box cont. |
|---|---|---|---|---|---|---|
| 32418894 | HRI-E/P 70W/NDL/230/E27 | 78 W | 6200 lm | 55 mm | 141 mm | 20 |
| 32418895 | HRI-E/P 70W/WDL/230/E27 | 78 W | 6200 lm | 55 mm | 141 mm | 20 |
| 32418896 | HRI-E/P 100W/NDL/230/E27 | 100 W | 7300 lm | 55 mm | 141 mm | 20 |
| 32418897 | HRI-E/P 100W/WDL/230/E27 | 100 W | 7300 lm | 55 mm | 141 mm | 20 |
| 32418893 | HRI-E/P 150W/NDL/230/E27 | 150 W | 11400 lm | 55 mm | 141 mm | 12 |
| 32418944 | HRI-E/P 150W/WDL/230/E27 | 150 W | 11400 lm | 55 mm | 141 mm | 12 |
| 32418886 | HRI-E/P 250W/D/230/E40 | 250 W | 17000 lm | 90 mm | 226 mm | 12 |
| 32418887 | HRI-E/P 400W/D/230/E40 | 420 W | 31000 lm | 120 mm | 290 mm | 12 |
HRI-E elliptical bulb, coated, UV-EX, E40, for enclosed luminaires
| Art.-No. | Order Code | Lamp wattage | Luminous flux | Diameter max. | Overall Length max. | Box cont. |
|---|---|---|---|---|---|---|
| 32418885 | HRI-E 250W/D/PRO/230/E40 | 250 W | 18000 lm | 90 mm | 226 mm | 12 |
| 32418884 | HRI-E 400W/D/PRO/230/E40 | 420 W | 34000 lm | 120 mm | 290 mm | 12 |
HRI-E.../NSC elliptical bulb clear, E40, for enclosed luminaires
| Art.-No. | Order Code | Lamp wattage | Luminous flux | Diameter max. | Overall Length max. | Box cont. |
|---|---|---|---|---|---|---|
| 32416561 | HRI-E 400W/NSC/S/230/C/E40 | 440 W | 42000 lm | 120 mm | 290 mm | 12 |
| 32416601 | HRI-E 1000W/NSC/230/C/E40 | 1000 W | 100000 lm | 165 mm | 380 mm | 6 |
HRI-E.../NSC elliptical bulb, coated, E40, for enclosed luminaires
| Art.-No. | Order Code | Lamp wattage | Luminous flux | Diameter max. | Overall Length max. | Box cont. |
|---|---|---|---|---|---|---|
| 32416563 | HRI-E 400W/NSC/S/230/F/E40 | 440 W | 40000 lm | 120 mm | 290 mm | 12 |
| 32416584 | HRI-E 1000W/NSC/230/F/E40 | 1050 W | 100000 lm | 165 mm | 380 mm | 6 |
