Metal Halide Lamps - Tubular

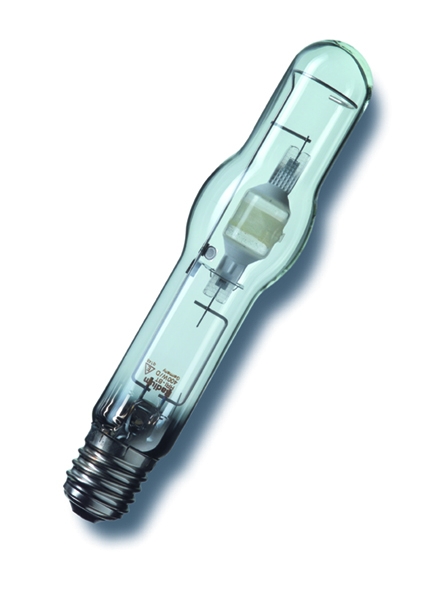

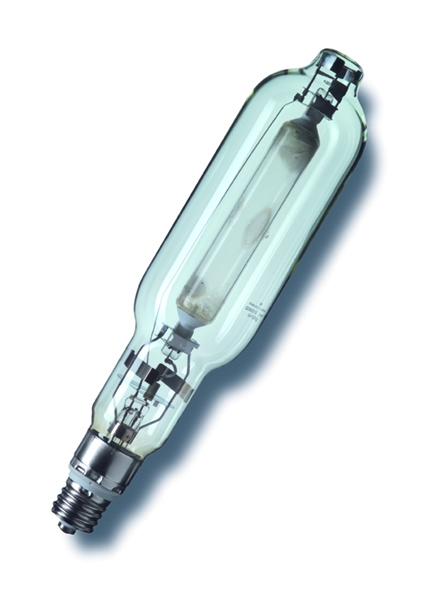

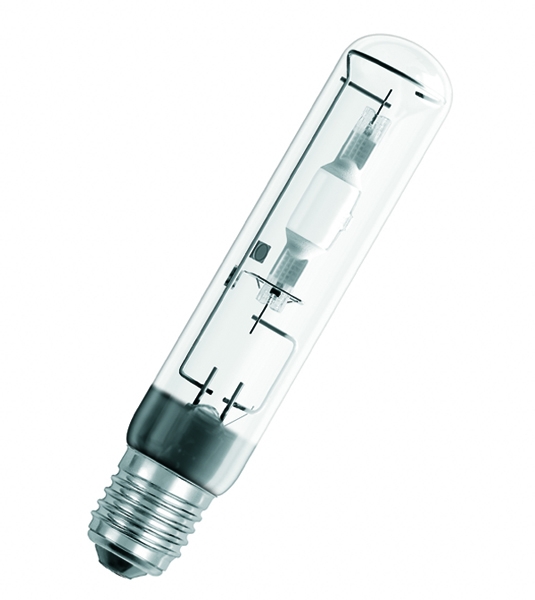

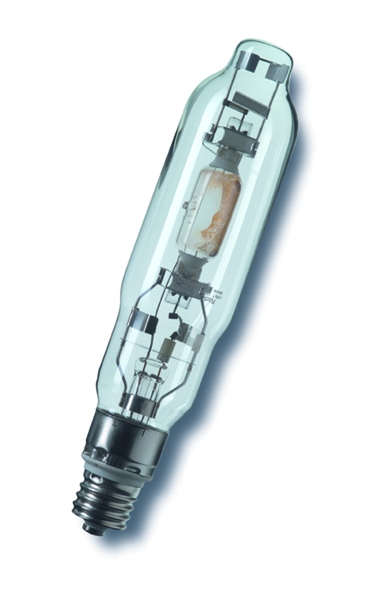

HRI-T tubular shape clear, E40, for enclosed luminaires
| Art.-No. | Order Code | Lamp wattage | Luminous flux | Diameter max. | Overall Length max. | Box cont. |
|---|---|---|---|---|---|---|
| 32418882 | HRI-T 250W/D/PRO/230/E40 | 250 W | 20000 lm | 46 mm | 226 mm | 12 |
| 32418883 | HRI-BT 400W/D/PRO/230/E40 | 420 W | 35000 lm | 62 mm | 285 mm | 12 |
| 32416565 | HRI-T 1000W/D/230/E40 | 1000 W | 85000 lm | 76 mm | 345 mm | 6 |
| 32416568 | HRI-T 2000W/D/400/E40 | 2050 W | 180000 lm | 100 mm | 430 mm | 4 |
| 32416571 | HRI-T 2000W/D/I/400/E40 | 2050 W | 180000 lm | 100 mm | 430 mm | 4 |
| 32416627 | HRI-T 2000W/N/I/400/E40 | 2000 W | 205000 lm | 100 mm | 430 mm | 4 |
| 32416574 | HRI-T 3500W/D/400/E40 | 3500 W | 320000 lm | 100 mm | 435 mm | 4 |
HRI-T tubular shape clear, low starting voltage, E40, for enclosed luminaires
| Art.-No. | Order Code | Lamp wattage | Luminous flux | Diameter max. | Overall Length max. | Box cont. |
|---|---|---|---|---|---|---|
| 32412889 | HRI-T 400W/N/SI/230/E40 | 400 W | 48000 lm | 58 mm | 248 mm | 10 |
| 32416629 | HRI-T 2000W/N/230/E40 | 1950 W | 190000 lm | 100 mm | 430 mm | 4 |
HRI-TS short arc lamp without outer bulb, K12s, for enclosed luminaires
| Art.-No. | Order Code | Lamp wattage | Luminous flux | Diameter max. | Overall Length max. | Box cont. |
|---|---|---|---|---|---|---|
| 32416578 | HRI-T 400W/NSC/S/230/E40 | 430 W | 42000 lm | 46 mm | 273 mm | 12 |
| 32416585 | HRI-T 1000W/NSC/230/E40 | 1000 W | 110000 lm | 76 mm | 345 mm | 6 |
| 32416628 | HRI-T 2000W/NSC/400/E40 | 2000 W | 240000 lm | 100 mm | 430 mm | 4 |
