Halogen Mains Voltage Lamps - Double Ended

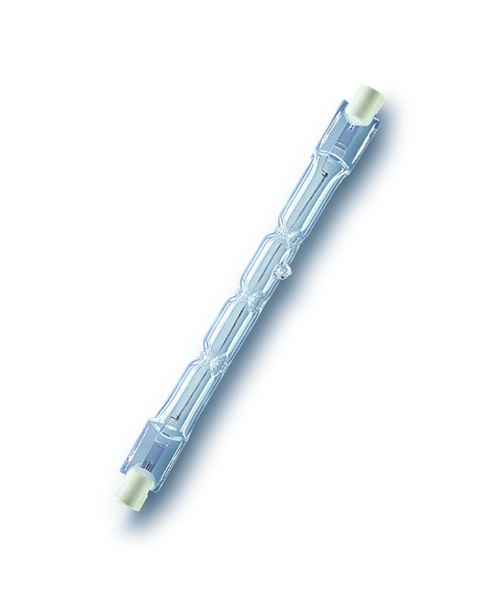

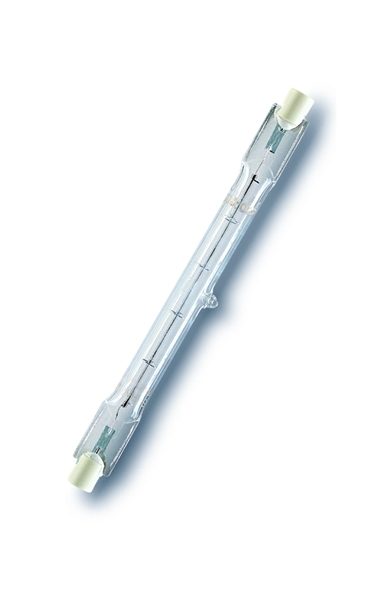

Halogen lamps EcoPlus, 230V, clear, double based R7s, for enclosed luminaires
| Art.-No. | Order Code | Energy Label | Luminous flux | Diameter max. | Contact distance | Box cont. |
|---|---|---|---|---|---|---|
| 22315730 | RJH-TS 48W/230/C/XE/R7S | C | 750 lm | 12 mm | 74.9 mm | 20 |
| 22315693 | RJH-TS 80W/230/C/XE/R7S | D | 1400 lm | 12 mm | 74.9 mm | 20 |
| 22315735 | RJH-TS 80W/230/C/XE/R7S | D | 1400 lm | 12 mm | 74.9 mm | 20 |
| 22315571 | RJH-TSK 120W/230/C/XE/R7S | C | 2250 lm | 12 mm | 74.9 mm | 20 |
| 22315743 | RJH-TSK 120W/230/C/XE/R7S | C | 2250 lm | 12 mm | 74.9 mm | 20 |
| 22315651 | RJH-TS 120W/230/C/XE/R7S | D | 2250 lm | 12 mm | 114.2 mm | 20 |
| 22315751 | RJH-TS 120W/230/C/XE/R7S | D | 2250 lm | 12 mm | 114.2 mm | 20 |
| 22315652 | JH-TS 160W/230/C/XE/R7S | C | 3100 lm | 12 mm | 114.2 mm | 20 |
| 22315757 | RJH-TS 160W/230/C/XE/R7S | C | 3100 lm | 12 mm | 114.2 mm | 20 |
| 22315762 | RJH-TS 230W/230/C/XE/R7S | C | 5000 lm | 12 mm | 114.2 mm | 20 |
| 22315552 | RJH-TS 400W/230/C/XE/R7S | C | 9000 lm | 12 mm | 114.2 mm | 20 |
| 22315770 | RJH-TS 400W/230/C/XE/R7S | C | 9000 lm | 12 mm | 114.2 mm | 20 |
Halogen lamps EcoPlus, 240V, clear, double based R7s, for enclosed luminaires
| Art.-No. | Order Code | Energy Label | Luminous flux | Diameter max. | Contact distance | Box cont. |
|---|---|---|---|---|---|---|
| 22315767 | RJH-TS 230W/240/C/XE/R7S | C | 5000 lm | 12 mm | 114.2 mm | 20 |
| 22315776 | RJH-TS 400W/240/C/XE/R7S | C | 9000 lm | 12 mm | 114.2 mm | 20 |

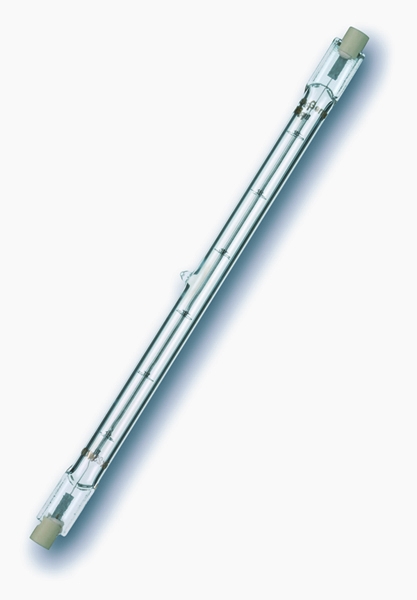

Halogen lamps, 230V, clear, double based R7s, for enclosed luminaires
| Art.-No. | Order Code | Energy Label | Luminous flux | Diameter max. | Contact distance | Box cont. |
|---|---|---|---|---|---|---|
| 22315779 | RJH-TS 230W/240/C/XE/R7S | C | 16500 lm | 12 mm | 185.7 mm | 12 |
| 22300317 | RJH-TS 400W/240/C/XE/R7S | C | 22000 lm | 12 mm | 185.7 mm | 12 |
| 22315781 | RJH-TS 1000W/230/C/R7S | C | 22000 lm | 12 mm | 185.7 mm | 12 |
| 22317412 | RJH-TS 1500W/230/C/R7S | C | 33000 lm | 12 mm | 250.7 mm | 12 |
| 22300605 | RJH-TS 2000W/230/C/R7S | C | 44000 lm | 12 mm | 327.4 mm | 12 |
| 22317409 | RJH-TS 2000W/230/C/R7S | C | 44000 lm | 12 mm | 327.4 mm | 12 |

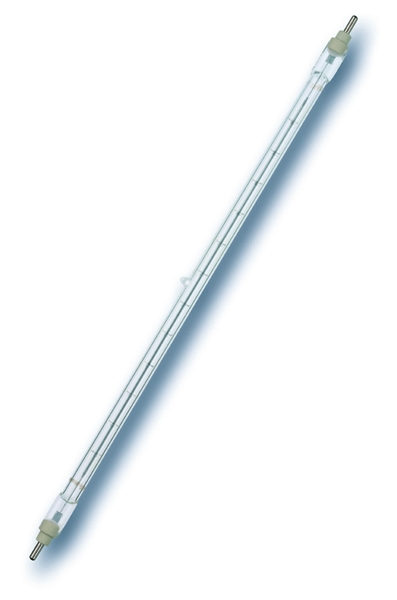

Halogen lamps, 230V, clear, double based Fa4, for enclosed luminaires
| Art.-No. | Order Code | Energy Label | Luminous flux | Diameter max. | Contact distance | Box cont. |
|---|---|---|---|---|---|---|
| 22301620 | RJH-TS 2000W/230/C/FA4 | C | 44000 lm | 12 mm | 334.4 mm | 12 |
| 22317410 | RJH-TS 2000W/230/C/FA4 | C | 44000 lm | 12 mm | 334.4 mm | 12 |
Halogen lamps, 240V, clear, double based R7s, for enclosed luminaires
| Art.-No. | Order Code | Energy Label | Luminous flux | Diameter max. | Contact distance | Box cont. |
|---|---|---|---|---|---|---|
| 22315783 | RJH-TS 1000W/240/C/R7S | C | 22000 lm | 12 mm | 185.7 mm | 12 |
| 22308313 | RJH-TS 1500W/240/C/R7S | C | 33000 lm | 12 mm | 250.7 mm | 12 |
| 22317411 | RJH-TS 1500W/240/C/R7S | C | 33000 lm | 12 mm | 250.7 mm | 12 |
Halogen lamps, 42V, clear, double based R7s, for enclosed luminaires
| Art.-No. | Order Code | Energy Label | Luminous flux | Diameter max. | Contact distance | Box cont. |
|---|---|---|---|---|---|---|
| 22315316 | RJL-TS 400W/42/C/R7S | C | 9000 lm | 12 mm | 114.2 mm | 12 |
| 22317413 | RJL-TS 400W/42/C/R7S | C | 9000 lm | 12 mm | 114.2 mm | 12 |
