Metal Halide Lamps - Double Based

RCC-TS Ceraball clear, double based, UV-EX, R7s, for enclosed luminaires

Art.-No. Order Code Lamp wattage Luminous flux Diameter max. Overall Length max. Box cont.
32418271 RCC-TS 70W/NDL/230/RX7S 73 W 6700 lm 20 mm 114.2 mm 12
32418270 RCC-TS 70W/WDL/230/RX7S 73 W 7000 lm 20 mm 114.2 mm 12
32418273 RCC-TS 150W/NDL/230/RX7S 138 W 14400 lm 23 mm 132 mm 12
32418272 RCC-TS 150W/WDL/230/RX7S 147 W 15000 lm 23 mm 132 mm 12



HRI-TS Excellence clear, double based, UV-EX, RX7s, for enclosed luminaires

Art.-No. Order Code Lamp wattage Luminous flux Diameter max. Overall Length max. Box cont.
32418655 HRI-TS 70W/D/230/XLN/RX7S 78 W 6200 lm 20 mm 117 mm 12
32418877 HRI-TS 70W/D/230/XLN/RX7S 78 W 6200 lm 19 mm 117 mm 12
32418878 HRI-TS 70W/NDL/230/XLN/RX7S 78 W 6500 lm 19 mm 117 mm 12
32418879 HRI-TS 70W/WDL/230/XLN/RX7S 78 W 6200 lm 19 mm 117 mm 12
32418658 HRI-TS 150W/D/230/XLN/RX7S 150 W 13500 lm 23 mm 135 mm 12
32418880 HRI-TS 150W/D/230/XLN/RX7S 150 W 13500 lm 23 mm 135 mm 12
32418876 HRI-TS 150W/NDL/230/XLN/RX7S 150 W 12500 lm 23 mm 135 mm 12
32418881 HRI-TS 150W/WDL/230/XLN/RX7S 150 W 12500 lm 23 mm 135 mm 12



HRI-TS clear, double based, UV-EX, Fc2, for enclosed luminaires

Art.-No. Order Code Lamp wattage Luminous flux Diameter max. Overall Length max. Box cont.
32418888 HRI-TS 250W/D/PRO/230/FC2 250 W 20000 lm 26 mm 162 mm 12
32418889 HRI-TS 250W/NDL/230/FC2 250 W 20000 lm 26 mm 162 mm 12
32418890 HRI-TS 250W/WDL/230/FC2 250 W 22000 lm 26 mm 162 mm 12
32418891 HRI-TS 400W/D/PRO/230/FC2 400 W 37000 lm 33 mm 206 mm 12
32418892 HRI-TS 400W/NDL/230/FC2 400 W 36000 lm 33 mm 206 mm 12



HRI-TS High flux, short arc lamp without outer bulb, K12s, for enclosed luminaires

Art.-No. Order Code Lamp wattage Luminous flux Diameter max. Overall Length max. Box cont.
32416491 HRI-TS 2000W/D/S/HF/400/K12S 2060 W 230000 lm 36 mm 187 mm 10



HRI-TS short arc lamp without outer bulb, K12s, for enclosed luminaires

Art.-No. Order Code Lamp wattage Luminous flux Diameter max. Overall Length max. Box cont.
32416576 HRI-TS 1000W/D/S/PRO/230/K12S 1000 W 90000 lm 36 mm 187 mm 10
32416593 HRI-TS 1000W/NDL/S/230/K12S 1000 W 90000 lm 36 mm 187 mm 10
32418615 HRI-TS 2000W/D/S/400/K12S 1950 W 210000 lm 41 mm 187 mm 10
32416580 HRI-TS 2000W/NDL/S/400/K12S 2000 W 225000 lm 36 mm 187 mm 10



HRI-TS short arc lamp without outer bulb, double pinch, for enclosed luminaires

Art.-No. Order Code Lamp wattage Luminous flux Diameter max. Overall Length max. Box cont.
32416625 HRI-TS 2000W/D/S/DP/400 2020 W 220000 lm 36 mm 365 mm 10



HRI-TS long arc lamp without outer bulb, K12s, for enclosed luminaires

Art.-No. Order Code Lamp wattage Luminous flux Diameter max. Overall Length max. Box cont.
32416582 HRI-TS 2000W/N/L/400/K12S 2150 W 230000 lm 32 mm 274 mm 10



HRI-TS/LR long arc lamp without outer bulb, K12s, for enclosed luminaires

Art.-No. Order Code Lamp wattage Luminous flux Diameter max. Overall Length max. Box cont.
32416640 HRI-TS/LR 2000W/N/L/400/K12S 2050 W 220000 lm 41 mm 274 mm 10

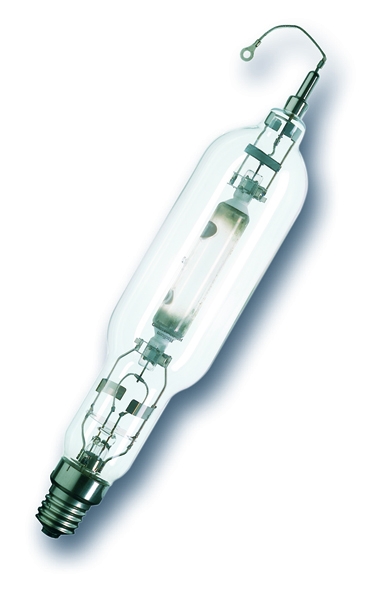

HRI-TS tubular shape clear, UV-EX, E40, for enclosed luminaires

Art.-No. Order Code Lamp wattage Luminous flux Diameter max. Overall Length max. Box cont.
32416569 HRI-TS 2000W/D/400/E40 2000 W 180000 W 100 mm 495 mm 4
32416572 HRI-TS 3500W/D/400/E40 3500 W 320000 W 100 mm 495 mm 4
