Mini-MEGA with closed dichroic reflector, GU4
Art.-No. | Order Code | Luminous intensity | Angle of emission | Diameter max. | Overall lenth max. | Box cont. |
---|---|---|---|---|---|---|
22312452 | RJLS 20W/12/MEGA/WFL/GU4 | 700 cd | 36 degrees | 35 mm | 40 mm | 10 |
22312454 | RJLS 35W/12/MEGA/WFL/GU4 | 1400 cd | 36 degrees | 35 mm | 40 mm | 10 |

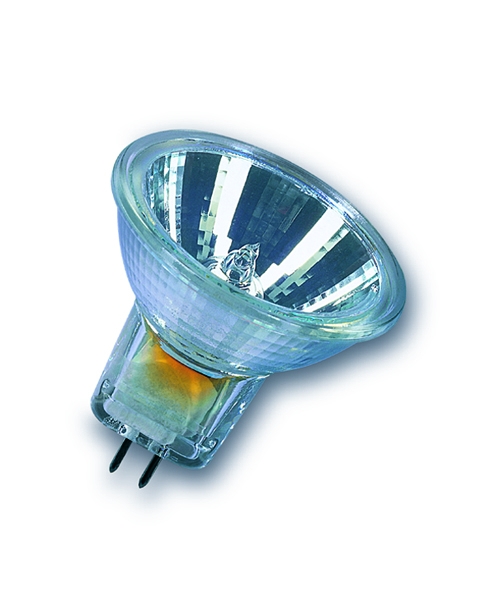

Mini with closed dichroic reflector, GU4
Art.-No. | Order Code | Luminous intensity | Angle of emission | Diameter max. | Overall lenth max. | Box cont. |
---|---|---|---|---|---|---|
22312063 | RJLS 10W/12/WFL/GU4 | 300 cd | 36 degrees | 35 mm | 40 mm | 10 |
22311229 | RJLS 20W/12/SP/GU4 | 2500 cd | 10 degrees | 35 mm | 40 mm | 10 |
22311231 | RJLS 20W/12/WFL/GU4 | 580 cd | 36 degrees | 35 mm | 40 mm | 10 |
22311232 | RJLS 35W/12/SP/GU4 | 5000 cd | 10 degrees | 35 mm | 40 mm | 10 |
22311234 | RJLS 35W/12/WFL/GU4 | 1000 cd | 36 degrees | 35 mm | 40 mm | 10 |
