Metal Halide Lamps - G12

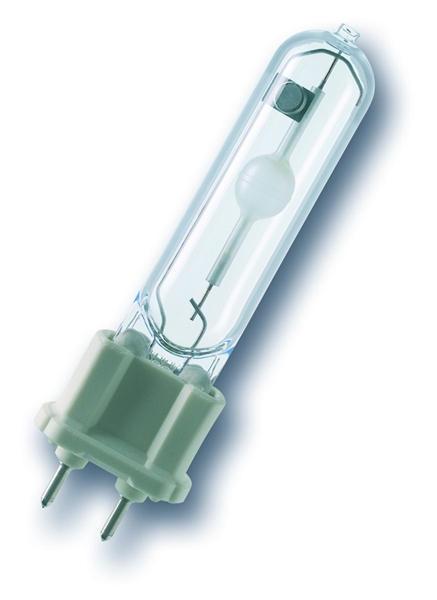

RCC-T Ceraball clear, tubular shape, UV-EX, G12, for enclosed luminaires
| Art.-No. | Order Code | Lamp wattage | Luminous flux | Diameter max. | Overall Length max. | Box cont. |
|---|---|---|---|---|---|---|
| 32418265 | RCC-T 35W/NDL/230/G12 | 37 W | 3500 lm | 19 mm | 100 mm | 12 |
| 32418264 | RCC-T 35W/WDL/230/G12 | 39 W | 3700 lm | 19 mm | 100 mm | 12 |
| 32418267 | RCC-T 70W/NDL/230/G12 | 72 W | 6800 lm | 19 mm | 100 mm | 12 |
| 32418266 | RCC-T 70W/WDL/230/G12 | 73 W | 7400 lm | 19 mm | 100 mm | 12 |
| 32418269 | RCC-T 150W/NDL/230/G12 | 147 W | 14700 lm | 25 mm | 100 mm | 12 |
| 32418268 | RCC-T 150W/WDL/230/G12 | 147 W | 15100 lm | 25 mm | 100 mm | 12 |

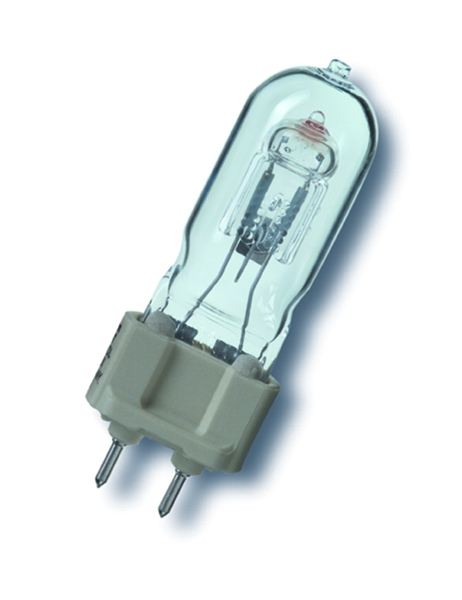

HRI-T tubular shape clear, G12, for enclosed luminaires
| Art.-No. | Order Code | Lamp wattage | Luminous flux | Diameter max. | Overall Length max. | Box cont. |
|---|---|---|---|---|---|---|
| 32418898 | HRI-T 70W/NDL/230/G12 | 75 W | 5800 lm | 25 mm | 84 mm | 12 |
| 32418899 | HRI-T 70W/WDL/230/G12 | 75 W | 5300 lm | 25 mm | 84 mm | 12 |
| 32418900 | HRI-T 150W/NDL/230/G12 | 150 W | 13000 lm | 25 mm | 84 mm | 12 |
| 32418901 | HRI-T 150W/WDL/230/G12 | 150 W | 13000 lm | 25 mm | 84 mm | 12 |
